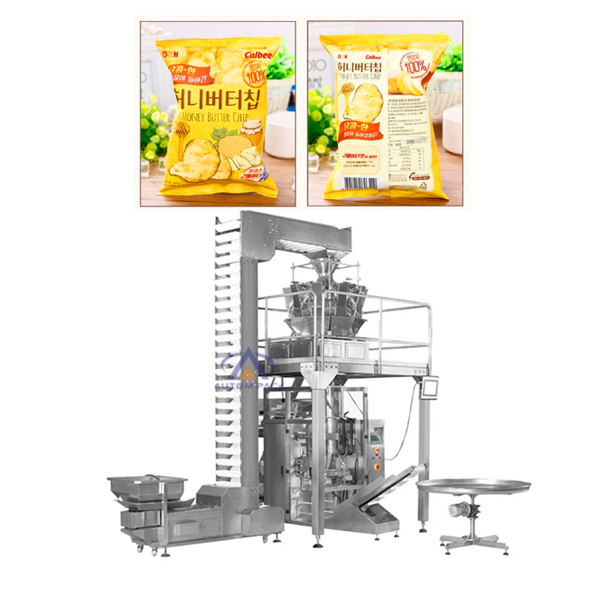

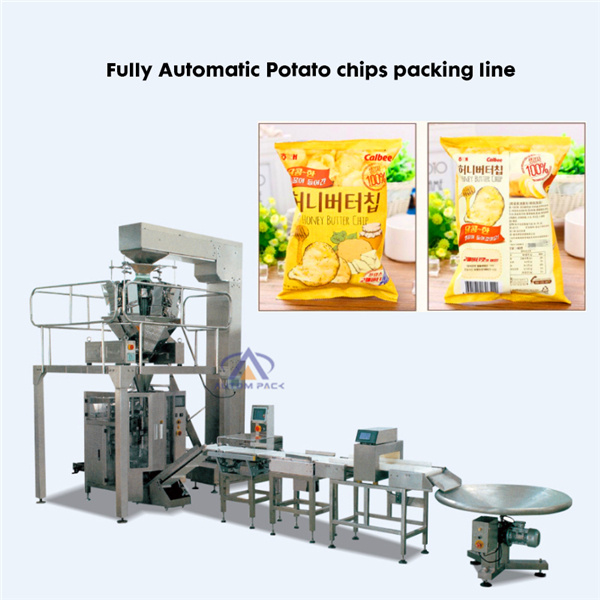

Full Automatic Potato Chips Vertical Packing Machine Bag Fill With Nitrogen

  • Place of Origin: China
  • Brand Name: AUTOM
  • Certificate: CE/ISO/SGS
  • Model No: ATM-420W
  • Description: Full Automatic Potato Chips Vertical Packing Machine Bag Fill With Nitrogen
  • INQUIRY   EMAIL

Full-Automatic-Potato-Chips-Vertical-Packing-Machine-Bag-Fill-With-Nitrogen


Automatic Rice Chin Peanut Packing Machine With Multi Head WeigherAutomatic Rice Chin Peanut Packing Machine With Multi Head Weigher


AUTOMPACK’s mission is to keep developing intelligent vertical packaging machines and offer full automatic packaging solutions. till nowadays, we already have successfully developed over 25 types packaging machine included in pillow bag/gusset bag/quad seal bag/3 or 4 sides sealing bag, connected strip bag form fill seal bagger, a these equipment able to pack all different kinds of material such as most daily snacks, food, liquid, paste, Powder etc. forming and metal spares, high technical material, vegetable, etc. cover agriculture, industrial, manufacturing all sorts fields material and commodities to pack favorable through our vertical packing machine.


Technical Characteristics:

➣PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.

➣Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.

➣Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is

resistant to be worn-out.

➣External film releasing mechanism: simpler and easier installation of packing film.

➣Adjustment of bag deviation just needed to be controled by the touch screen. Operation is very simple .

➣Close down type mechanism , defending Powder into inside of machine.

Application:

The classification of food, grain, potato chips, snack food, Frozen food, Coffee Beans, oats, Sugar, salt (film), rice, pet food, puffed food, peanut, popcorn, Nuts, seeds, hardware etc..

Technical Parameters:


Model No.

ATM-420W

Packing speed (bags/min)

5-60bags/min

Max width of packing film (mm)

140mm-420mm

Packing pouch size(mm)

(L): 50-300mm (W): 50-200mm

Total power (kw)

2.2kw

Filling range(ml)

150-1000ml

Air consumption

0.8Mps 0.3m³/min

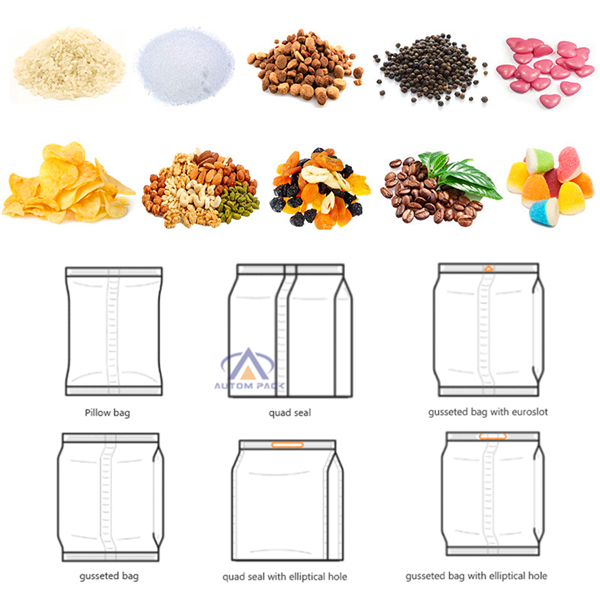

Type of bag making

Pillow bag/gusset bag

Max outside diameter of rolling film (mm)

≤φ400

Packing film thickness(mm)

0.05-0.12

Gross weight(kg)

600Kgs

Machine dimension(mm)

(L)1315×(W)1023×(H)1343mm

Working voltage

220v 50hz

Packing material applications

OPP, PE, PVC, OPP/CPP, OPP/PE, PET/VMPET/PE
