Vertical Packaging Machine

  • Automatic Coffee Powder 3&4 Sealing Vertical Packing Machine
Automatic Coffee Powder 3&4 Sealing Vertical Packing Machine

Automatic Coffee Powder 3&4 Sealing Vertical Packing Machine

  • Measuring Equipment: Auger filler
  • Packaging weight: 5-500g
  • High precision: ±0.5g
  • Packaging Material: PET/PE, Aluminum, VMCPP, VMPET etc.
  • Description: AUTOMPACK manufacture compeitive Coffee Powder 3&4 Sealing Vertical Packing Machine,vffs packing machine, coffee powder packing machine with good price.
  • INQUIRY   EMAIL

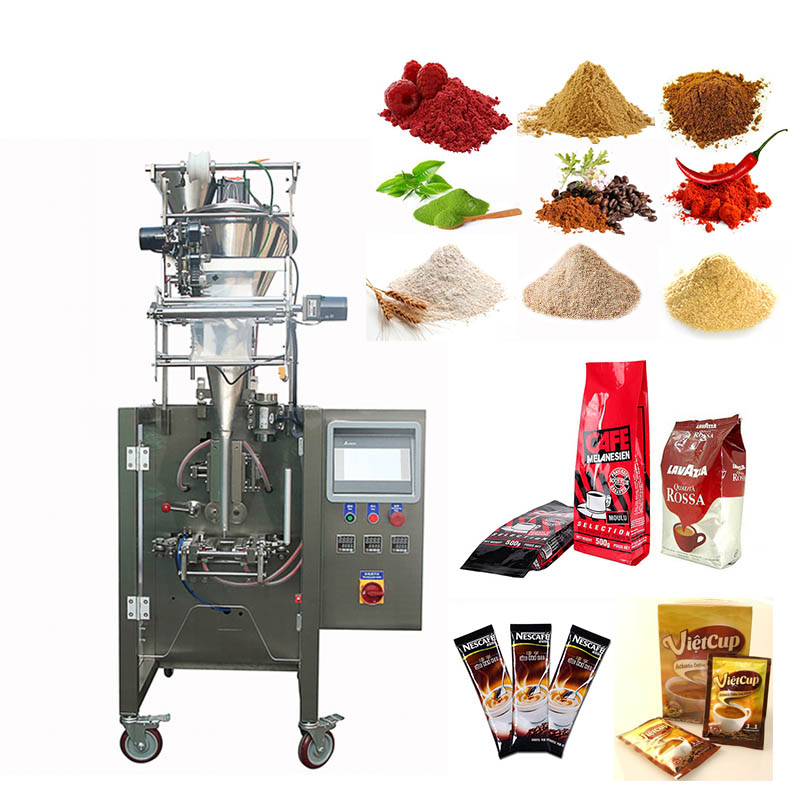

AutomPack Automatic Coffee Powder 3 & 4 Sealing Vertical Packing Machine

Model: ATM-240D, ATM-320D, ATM-380D


This is our Automatic Coffee Powder 3 & 4 Sealing Vertical Packing Machine, it equipped with Augur Filler and Screw Elevator, it is widely applied to packing Powder, such as detergent Powder, milk Powder, flour, spice, coco Powder, ground coffee, and so on.


Application:

Suitable for automatic packing for liquid, such as disinfectant, liquid soap, alcohol disinfectant, hand sanitizer etc. Different kinds of product with stand up pouches, doypack with zipper, 3 side seal bags, 4 side seal bags, flat bags, pouch with hole, spout pouch, etc,


Pouch Type:  Pillow bag, gusseted bag, block bottom bag, vacuum bag and valve applicators. The Automatic Coffee Powder 3 & 4 Sealing Vertical Packing Machine ATM-D series the production of block bottom bag sealed at the 4 edges for more stability (quad seal pack) is available.


Features:


1. Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.

2. Use famous brand electric and pneumatic components, stable and long life circle.

3. Use superior mechanical components, reduce the wear out loss.

4. PLC control with stable and high accuracy output.

5. Two color touch screen 7", one for packing machine, another for multihead weigher.

Technical Parameter:

Model ATM-240D ATM-320D ATM-380D
Measurement range 2-30g 5-100g 50-200g
Film width Max.240mm 120-320mm 180-380mm
Bag length 40-120mm 50-200mm 60-280mm
Bag width 40-120mm 50-150mm 60-180mm
Film roll diameter Max.300mm Max.300mm Max.320mm
Packaging rate 10-35bags/min (according to the product conditions) 35-70 bag/min (according to the product conditions) 35-70 bag/min (according to the product conditions)
Film thickness Max.50ml 50-500ml 50-750ml
Packing Film Materical 0.05--0.1mm 0.07-0.1mm 0.07-0.1mm
Power 220V 50HZ;1.2KW 220V 50/60Hz 2.2kw 220V 50/60Hz 2.5kw
Machine size (L)600x(W)600x(H)1600mm (L)970x(W)680x(H)1950mm (L)1100x(W)800x(H)2150mm
Machine weight About 160kg About 300kgs About 450kgs
