10-300ml ketchup oil honey paste filling and packing machine ATM-320L
- 10-300ml ketchup oil honey paste filling and packing machine ATM-320L
- Film material: Laminated film
- Measuring Equipment: Filling Pump
- Contact system: Touch screen & PLC controlled
- Description: We design and manufacture 10-300ml ketchup oil honey paste filling and packing machine ATM-320L

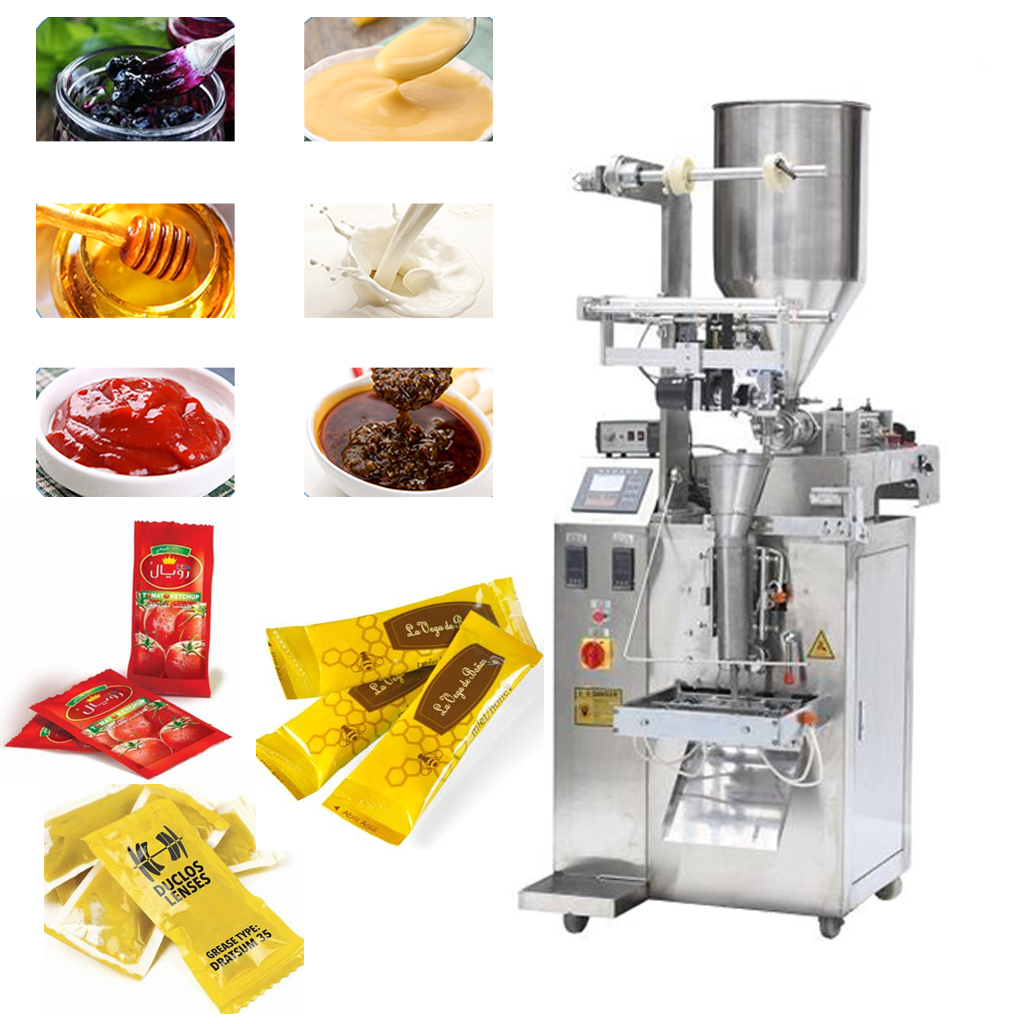

AutomPack 10-300ml ketchup oil honey paste filling and packing machine ATM-320L
Model: ATM-320L,ATM-380L
This is our 10-300ml ketchup oil honey paste filling and packing machine ATM-320L, it equipped with piston pump, it is widely applied to packing all kinds of liquid material which such as liquid milk, water, honey, juice, tomato paste, ketchup, sauce, oil,etc. Various bag types are available, e.g. back-sealing bag, 3 sides seal bag, 4 sides seal bag, stick bag, linking bags,etc.
Features:
1.High precision structure for simple and easy operation and repair.
2.PLC touch screen,step motor control,easy and accurate to set the bag length.
3.It's owns simple circuitry and outstanding function.
4.The machine completes the whole procedure of filling,bagging,date printing.charging(exhausting) automatic.
5.Optional device:Linked-bags device.
Technical Parameter:
Model
ATM-240L
ATM-320L
ATM-380L
Measurement range
Max.50ml
50-500ml
50-750ml
Film width
Max.240mm
120-320mm
180-380mm
Bag length
40-120mm
50-200mm
60-280mm
Bag width
40-120mm
50-150mm
60-180mm
Film roll diameter
Max.300mm
Max.300mm
Max.320mm
Packaging rate
10-35bags/min (according to the product conditions)
35-70 bag/min (according to the product conditions)
35-70 bag/min (according to the product conditions)
Film thickness
Max.50ml
50-500ml
50-750ml
Packing Film Materical
0.05--0.1mm
0.07-0.1mm
0.07-0.1mm
Power
220V 50HZ;1.2KW
220V 50/60Hz 2.2kw
220V 50/60Hz 2.5kw
Machine size
(L)600x(W)600x(H)1600mm
(L)970x(W)680x(H)1950mm
(L)1100x(W)800x(H)2150mm
Machine weight
About 160kg
About 300kgs
About 450kgs
Related Product: Liquid packing machine
