Automatic Packing Machine
Automatic 1kg Granule Seeds Packing Machine ATM-420W
- Place of Origin: China
- Brand Name: AUTOM
- Certificate: CE
- ATM-420W
- Description: Seeds Packing Machine, Grains Packing Machine
China Fully Automatic 1kg Granule Seeds Packing Machine

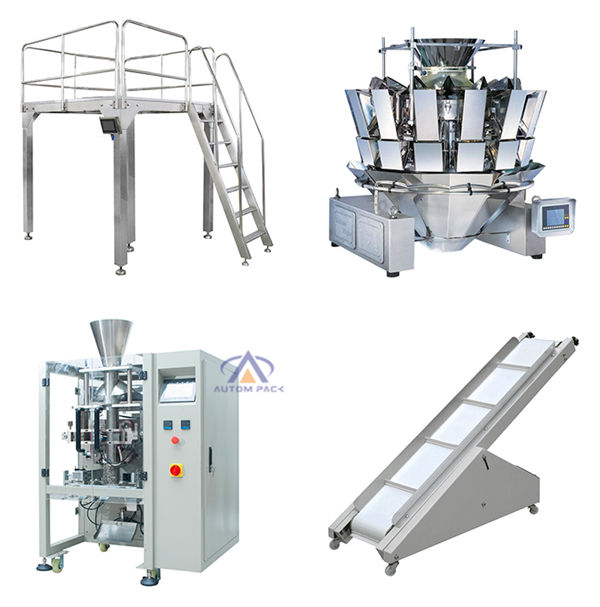

This is our ATM-420W/520W/620W/720W VFFS Automatic Weighing Packing Machine with Multihead Weigher, we have different models of VFFS Automatic Weighing Packing Machine with Multihead Weigher, we will get more product information to confirm the best packing solution, We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Application:

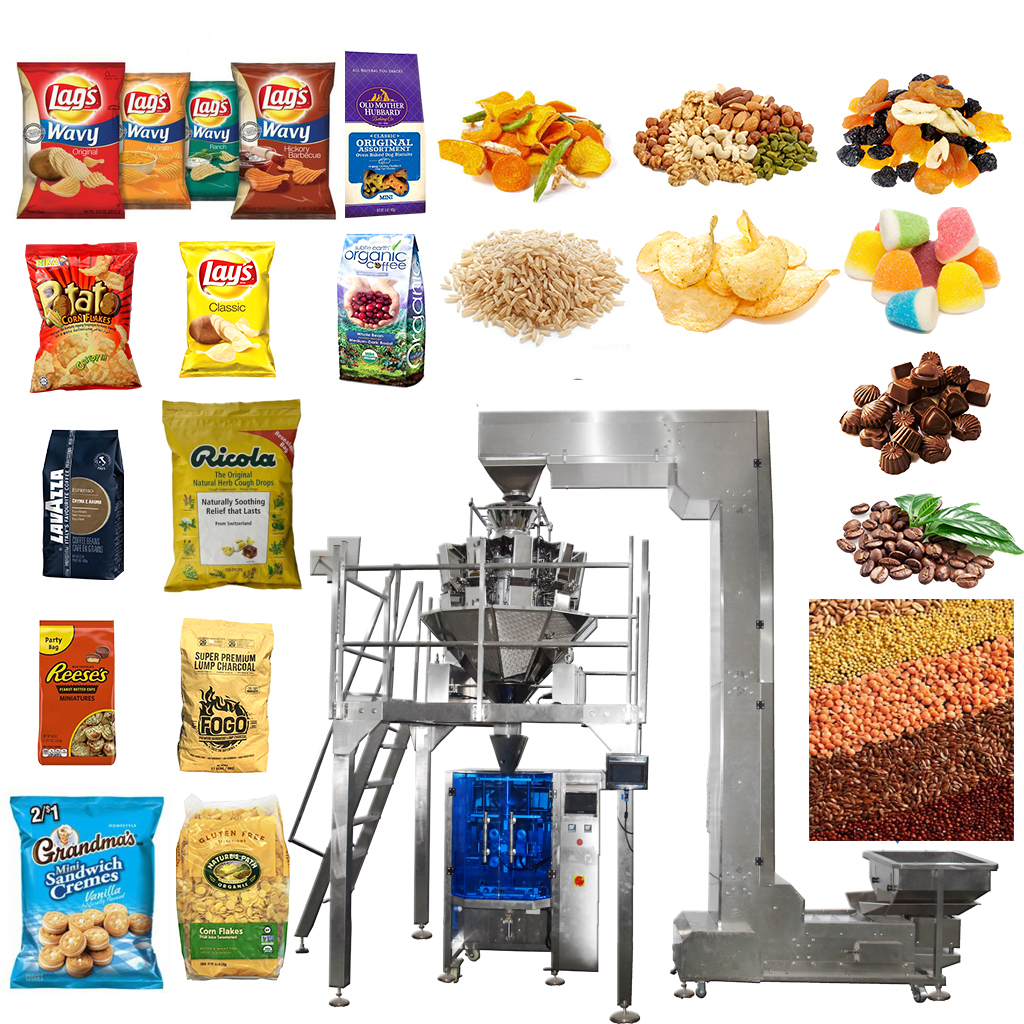

Suitable to use in Packaging The High Accuracy And Easy Fragile Material, Such as: Puffy Food, Crispy Rice, Jelly, Candy, Pistachio, Apple Slices, Dumpling, Chocolate, Pet Food, Small Hardwares, Medicine, etc.
Features:

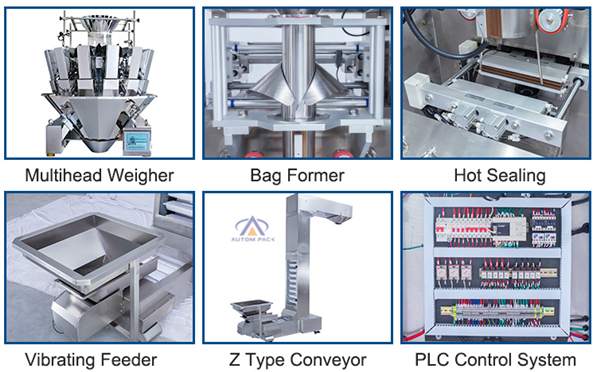

1.The machine adopts high precision servo film transport system, PLC Program Control,developed touchable Human-machine Interface of Advanced Automatic Positioning,Photoelectric Tracking,Digital Temperature Control,etc.
2.Operation is more Simple,perfect.It is the first choice of food packaging industry to Improve the production efficiency, reduce Labor Intensity, improve the grade of packaging equipment.
3.Transverse and longitudinal sealing Temperature Control independently,suitable for PE/polyethylene,PE/aluminum plating, pet/PE, pp,and other heat-ealing packaging materials, etc.
4.It completes the whole procedure of filling,measuring,bagging,date printing,charging(exhausting),product out-putting automatically.
5.High precision, high efficiency without crash the materials.
6.Packaging style diversified,back sealing,gusset bag,continuous bags,punching,etc.
7.Work environment quiet, low noise, saving energy.
8.A complete set of equipment is economical
Technical Parameters:
|
Model No. |
ATM-420W |
ATM-520W |
|
Packing speed (bags/min) |
5-120bags/min |
10-150bags/min |
|
Max width of packing film (mm) |
140mm-420mm |
140mm-520mm |
|
Packing pouch size(mm) |
(L): 50-300mm (W): 50-200mm |
(L): 50-400mm (W): 60-250mm |
|
Total power (kw) |
2.2kw |
4.8kw |
|
Filling range(ml) |
150-1000ml |
150-1000ml |
|
Air consumption |
0.8Mps 0.3m³/min |
≤φ400 |
|
Type of bag making |
Pillow bag/gusset bag |
Pillow bag/gusset bag |
|
Max outside diameter of rolling film (mm) |
≤φ400 |
0.8Mps 0.3m³/min |
|
Packing film thickness(mm) |
0.05-0.12 |
0.05-0.12 |
|
Gross weight(kg) |
600Kgs |
550Kgs |
|
Machine dimension(mm) |
(L)1315×(W)1023×(H)1343mm |
(L)1315×(W)1023×(H)1343mm |
|
Working voltage |
220v 50hz |
220v 50hz |
|
Packing material applications |
OPP, PE, PVC, OPP/CPP, OPP/PE, PET/VMPET/PE |
OPP, PE, PVC, OPP/CPP, OPP/PE, PET/VMPET/PE |
