Inquiry:
Coffee and Tea

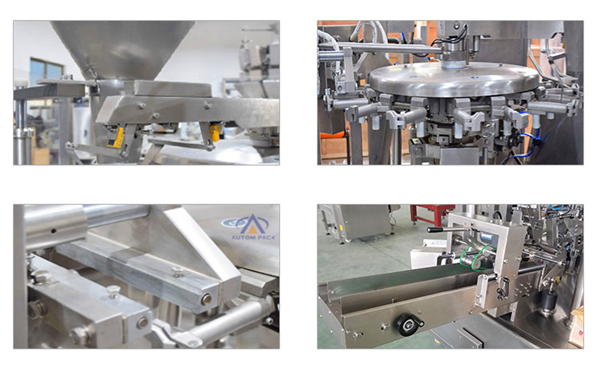

Automatic Filling Doypack Ground Coffee Powder Packaging Machine
- Place of Origin: China
- Brand Name: AUTOM
- Certificate: CE/ISO/SGS
- Model No: ATM-8200D
- Description: Automatic Filling Doypack Ground Coffee Powder Packaging Machine
Automatic Filling Doypack Ground Coffee Powder Packaging Machine
Here is hot sale products and packing project Automatic Filling Doypack Ground Coffee Powder Packaging Machine. Doybag is more and more popular in European and USA market. It is more convenient to keep or save the food only need to zip the bag up.
Application:
Suitable for the coffee Powder standing bag, zipper bag, pre-made bag packaging etc.
Pouch Type:
All type of heat sealable preformed side seal bags, fin seal bags, gusseted bags, block bottom bags, zip-lock recloseable bags, stand-up pouch with or without
spout etc.
Features:
Ø Allen Bradley servo-drive control platform
Ø PLC with color touch screen
Ø Durable welded steel frame
Ø Production parameter memory including gripper size, machine speed, sealing temperature, and
Ø filling volume
Ø Pouch presence detection: No pouch = No filling or sealing
Ø Bag deflation
Ø Automatic deoxidizer feeding station
Ø Two-step sealing process
Options:
Ø Robotic pick & place infeed system
Ø Integration with multi-heads cales; volumetric, auger, or liquid fillers
Ø Fully inter locked safety guards
Ø Presealing station for liquids
Ø Zipper opening device
Ø Extended bag magazine
Ø Date coding
Ø Integration with checkweighers and metal detectors
Ø Dust suction nozzles and dust collector hood Product settler
Ø Ethernet connectivity
Ø Washdown design(IP65orIP66)
Ø Gash flush
Ø Bag rejection station
Modified discharge configurations
Technical Parameters:
Model
ATM-8200D
ATM-8250D
ATM-8300D
Packing material
Pre-made bags, Stand-up bag, Four-side sealed bag, Self-reliance bag, Handbag, Spout bags, Zipper bags, Compound bag, Special-shaped bag etc.
Bag size
(L)100-300mm (W)70-200mm
(L)100-350mm (W)130-250mm
(L)150-450mm (W)200-300mm
Filling range
10g-1000g
10g-2000g
10g-3000g
Packing speed
40-60bag/min (depending on the quality of the packaging film, packaging materials, packaging weight etc.)
Measurement Average precision
≤±0.5-1% (Depending on the measurement on the measurement equipment and materials)
Maximum Bag Width
200mm
250mm
300mm
Total power
1.5KW 380V 50/60hz
1.8KW 380V 50/60hz
2KW 380V 50/60hz
Gas Consumption
0.8Mpa 0.3m3/min
0.8Mpa 0.3m3/min
0.8Mpa 0.3m3/min
Air Compressor
Not less than 1 CBM
Not less than 1 CBM
Not less than 1 CBM
Working flow
giving bag→coding→opening→filling 1→filling 2→auxiliary→exhaust→heat sealing→forming and output product
Dimensions
(L*W*H)1900mm*1400mm*1450mm
(L*W*H)1900mm*1400mm*1450mm
(L*W*H)1900mm*1500mm*1550mm
Machine Weight
1300kg
1400kg
1500kg
✉E: info@autompack.com ☎ Tel: +86-757-6395 2051 WhatsApp: +86 17727327291
Interested in this machines? ▶▶▶ Get a Free Quote
