Inquiry:
Multihead Weigher Packing Machine

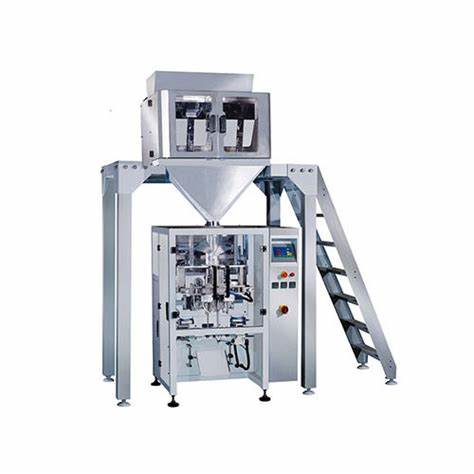

ATM-420WL China Manufacturer 1Kg 5Kg Fully Automatic Rice Sugar Packing Machine
- Place of Origin: China
- Brand Name: AUTOM
- Certificate: CE
- ATM-420WL
- Description: ATM-420WL China Manufacturer 1Kg 5Kg Fully Automatic Rice Sugar Packing Machine
ATM-420WL Food Automatic Ice Candy Sugar Filling And Packaging Machine

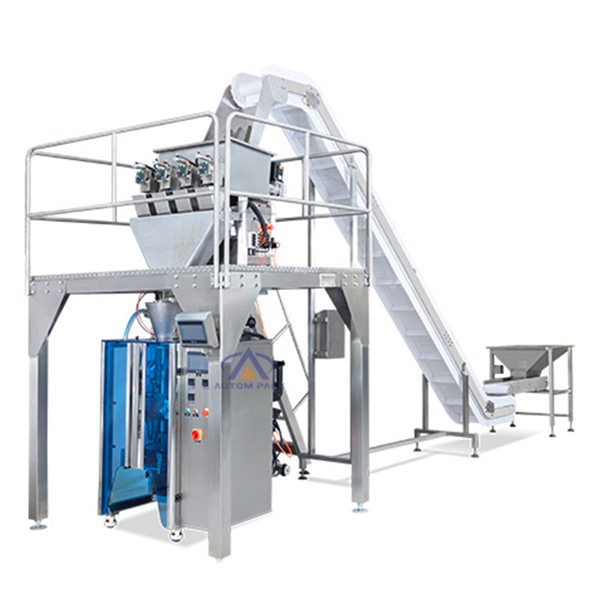

ATM-420W/520W/620W/720W VFFS Automatic Weighing Packing Machine with Multihead Weigher, we have different models of VFFS Automatic Weighing Packing Machine with Multihead Weigher, we will get more product information to confirm the best packing solution, We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Application:
Suitable to use in Packaging The High Accuracy And Easy Fragile Material, Such as: Puffy Food, Crispy Rice, Jelly, Candy, Pistachio, Apple Slices, Dumpling, Chocolate, Pet Food, Small Hardwares, Medicine, etc.
Features:
1.The machine adopts high precision servo film transport system, PLC Program Control,developed touchable Human-machine Interface of Advanced Automatic Positioning,Photoelectric Tracking,Digital Temperature Control,etc.
2.Operation is more Simple,perfect.It is the first choice of food packaging industry to Improve the production efficiency, reduce Labor Intensity, improve the grade of packaging equipment.
3.Transverse and longitudinal sealing Temperature Control independently,suitable for PE/polyethylene,PE/aluminum plating, pet/PE, pp,and other heat-ealing packaging materials, etc.
4.It completes the whole procedure of filling,measuring,bagging,date printing,charging(exhausting),product out-putting automatically.
5.High precision, high efficiency without crash the materials.
6.Packaging style diversified,back sealing,gusset bag,continuous bags,punching,etc.
7.Work environment quiet, low noise, saving energy.
8.A complete set of equipment is economical
| Model | ATM-420WL | ATM-520WL | ATM-620WL | ATM-720WL | ATM-900WL |
| Measurement range | 150-1000g | 200-2000g | 200-2500g | 500-5000g | Max.900mm |
| Film width | 140-Max.420mm | 180-Max.520mm | 150-Max. 620mm | 150-Max.720mm | 100-600mm |
| Bag length | 80-300mm | 80-350mm | 100-450mm | 100-500mm | 260-430mm |
| Bag width | 60-200mm | 80-250mm | 65-300mm | 65-350mm | Max. 400mm |
| Film roll diameter | 400mm | 400mm | 400mm | 400mm | 5-20 bag/min |
| Packaging rate | 5-60 bag/min (according to the product conditions) | 5-50 bag/min (according to the product conditions) | 5-45bag/min (according to the product conditions) | 5-40 bag/min (according to the product conditions) | 1-25L |
| Packing Film Materical | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Power | 220V 50/60Hz 2.2kw | 220V 50/60Hz 3.0kw | 220V 50/60Hz 3.0kw | 220V 50/60Hz 3.0kw | 220V 50/60Hz 4.5kw |
| Machine size | (L)1315x(W)1023x(H)1343mm | (L)1502x(W)1070x(H)1470mm | (L)1502x(W)1070x(H)1550mm | (L)1780x(W)1350x(H)2050mm | (L)2305x(W)1685x(H)2725mm |
| Machine weight | About 500kg | About 600kg | About 700kg | About 750kg | About 800kgs |
If you have interested in AUTOMPACK ATM-420WL/520WL/620WL/720WL VFFS Automatic Weighing Packing Machine with Multihead Weigher, according to following information, we will suggest the optimum solution to you for reference accordingly:
1. Product specification
2. Your product
3. How to package (independent packing/combination packing)
4. Packaging speed
5. Bag material
